Safety Belt Buckle and Pretensioner: Notes

NOTE: LH shown in illustration, RH similar.

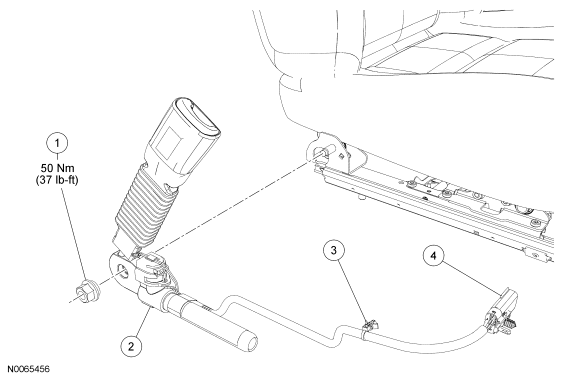

Fig 1: Safety Belt Buckle And Pretensioner With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Safety belt buckle pretensioner nut
2	610E15	Safety belt buckle pretensioner
3	-	Pin-type retainer
4	-	Electrical connector (part of 610E15)
