Rear Heated Seat Module Connector - C3162

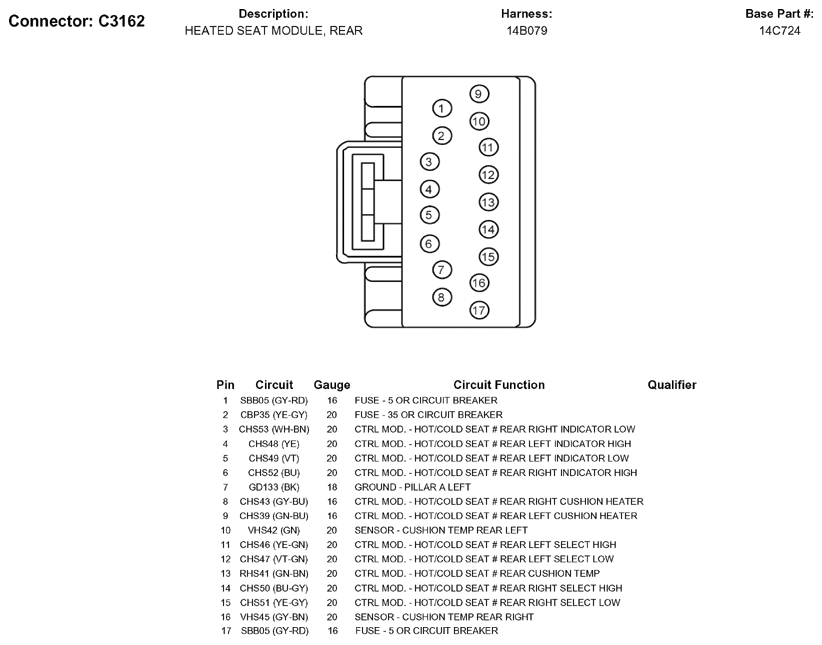

Fig 1: Rear Heated Seat Module Connector End View (C3162)

G05790158

Courtesy of FORD MOTOR CO.
