Rear Console Power Point Connector - C3323

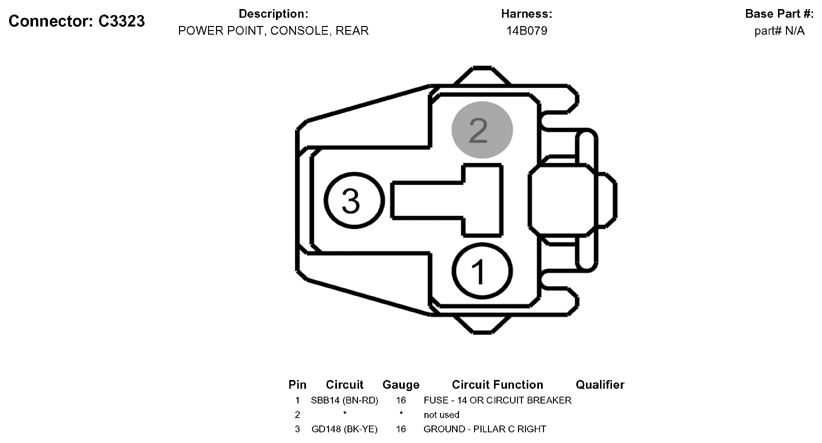

Fig 1: Rear Console Power Point Connector End View (C3323)

G05790186

Courtesy of FORD MOTOR CO.
