Electronic Throttle Control Connector - C1368

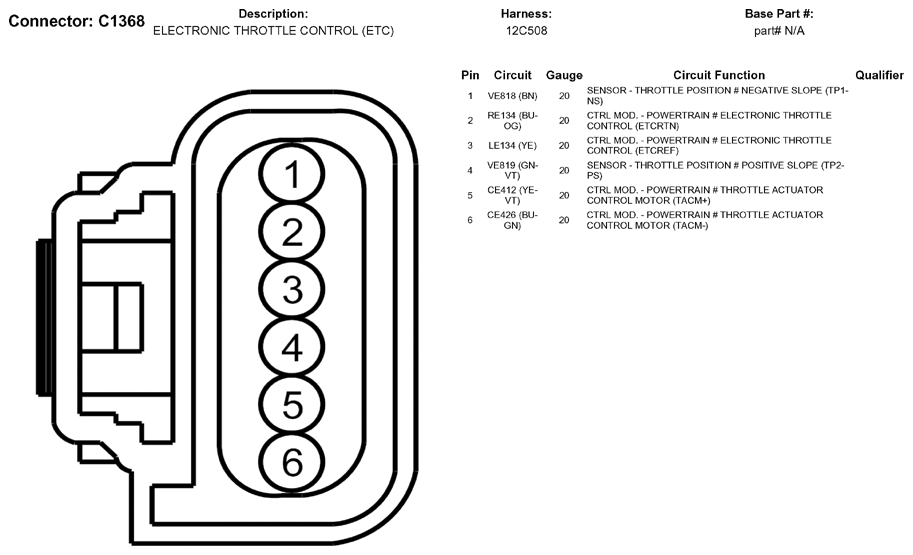

Fig 1: Electronic Throttle Control Connector End View (C1368)

G05790105

Courtesy of FORD MOTOR CO.
