Console Power Point Connector - C380

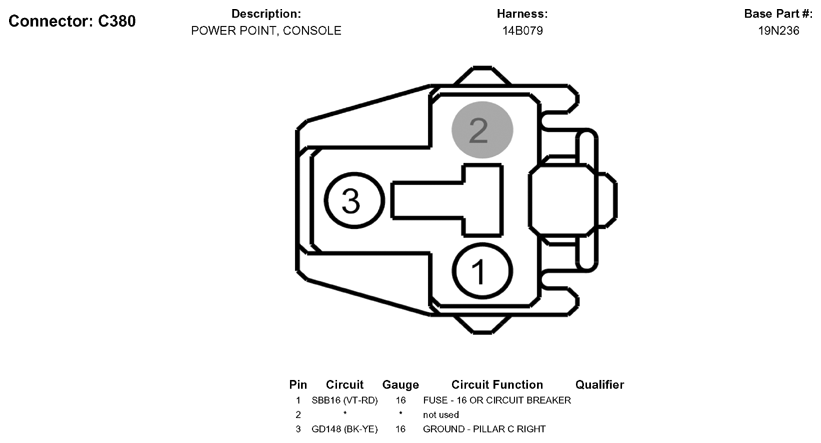

Fig 1: Console Power Point Connector End View (C380)

G05790008

Courtesy of FORD MOTOR CO.
