Blower Motor Speed Control Connector - C271

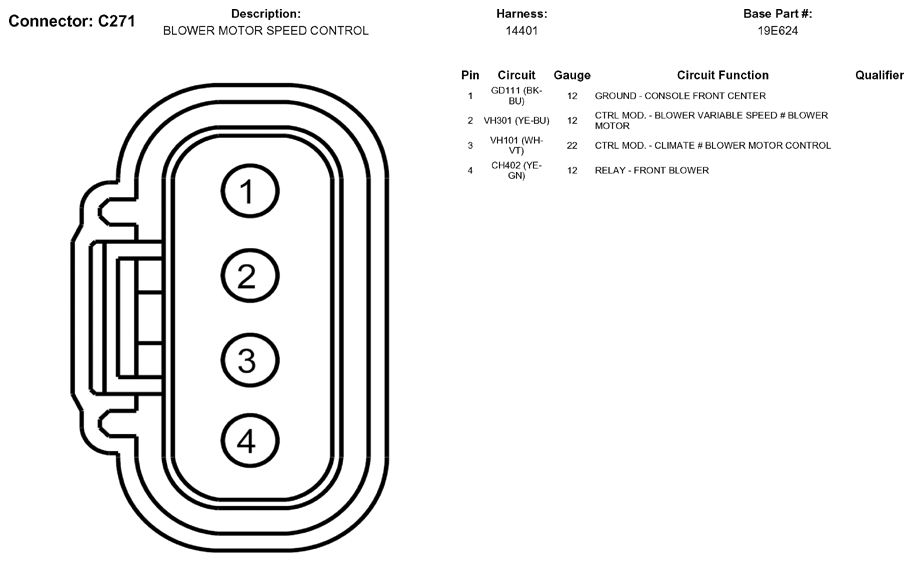

Fig 1: Blower Motor Speed Control Connector End View (C271)

G05789969

Courtesy of FORD MOTOR CO.
