Audio Input Jack Connector - C3312

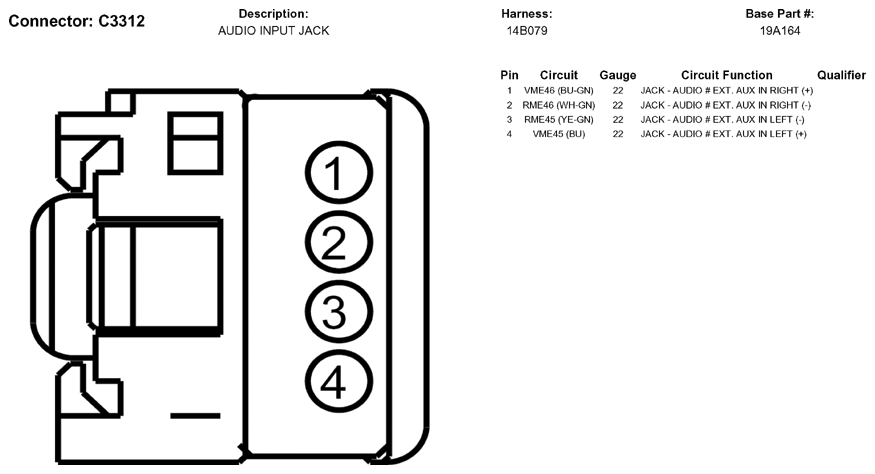

Fig 1: Audio Input Jack Connector End View (C3312)

G05790185

Courtesy of FORD MOTOR CO.
