Universal Serial Bus (USB) Cable and Port: Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Fusion, Milan shown in illustration, MKZ similar.

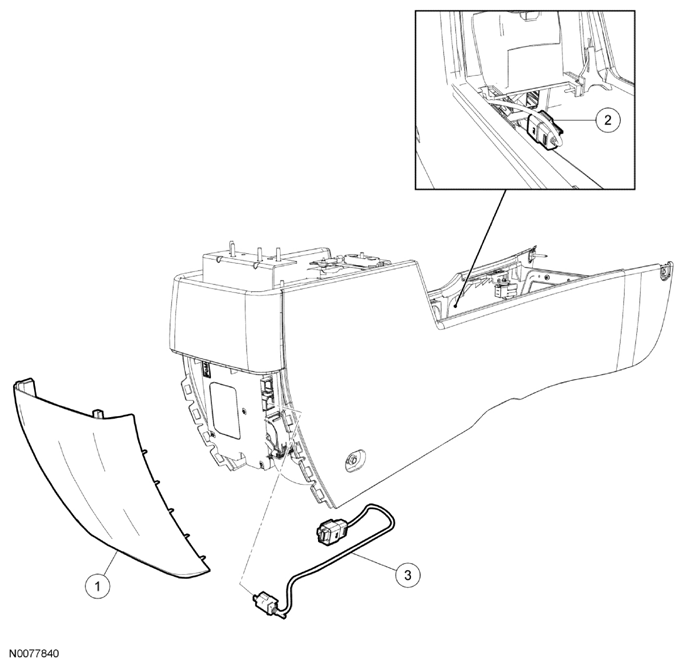

Fig 1: Identifying Universal Serial Bus (USB) Cable And Port Components
G07787828Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Floor console rear trim panel (part of 045A36)
2 - Universal Serial Bus (USB) cable and port-to-bezel connector (part of 14D202)
3 14D202 USB cable and port
