Blower Motor Speed Control Connector - C271

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

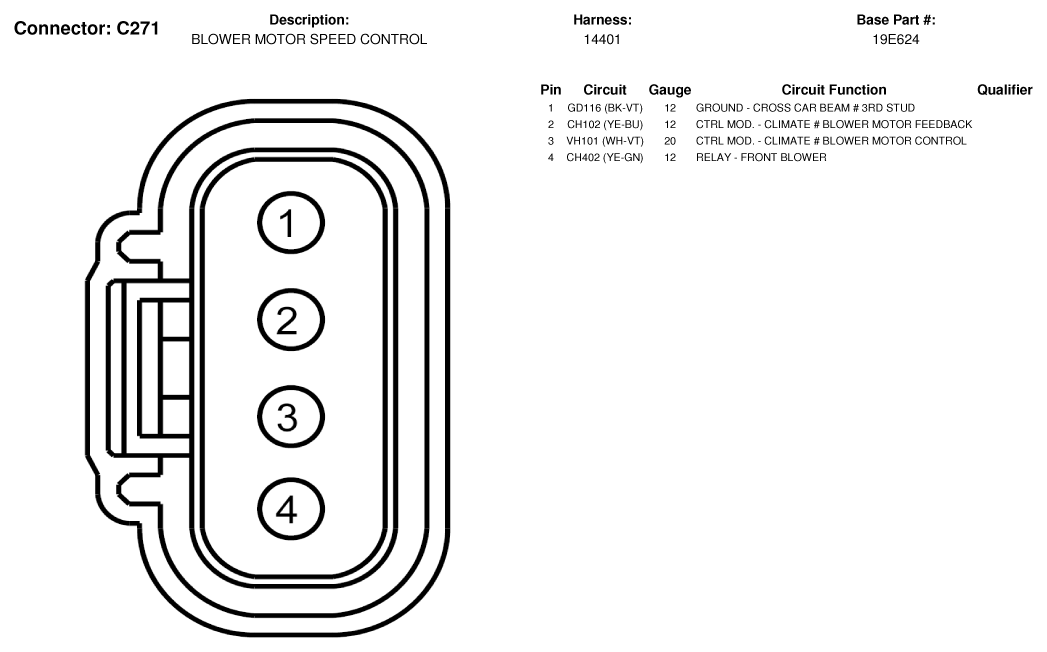

Fig 1: Blower Motor Speed Control Connector End View (C271)
G07336062Courtesy of FORD MOTOR CO.
