Liftgate Handle, Lock and Latch - Exploded View

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

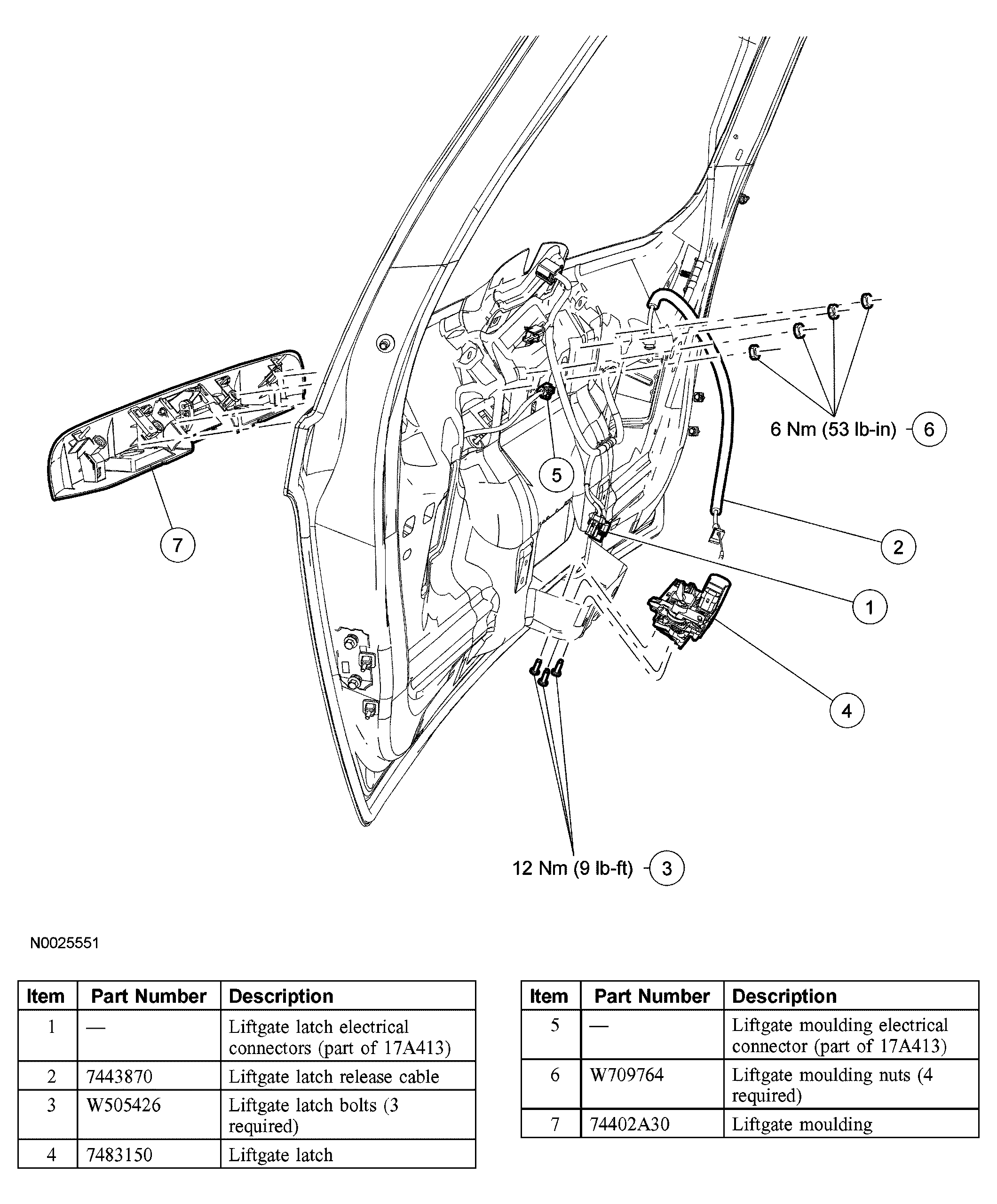

Fig 1: Exploded View Of Liftgate Handle, Lock And Latch
G03989266Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
