Transaxle Support Insulator - Anti-Roll: Notes

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

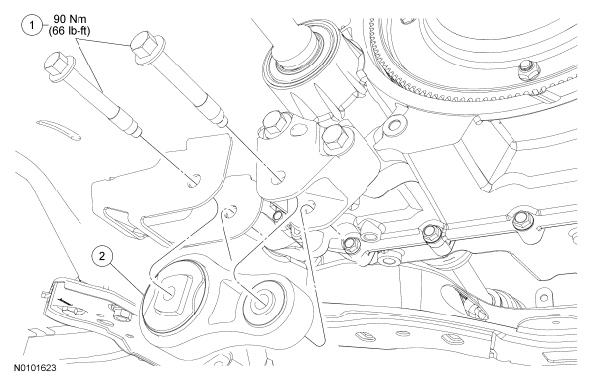

Fig 1: Transaxle Support Insulator -- Anti-Roll With Torque Specifications
G06278610Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W711575 Roll restrictor bolts
2 6P082 Roll restrictor
