Removal And Installation
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

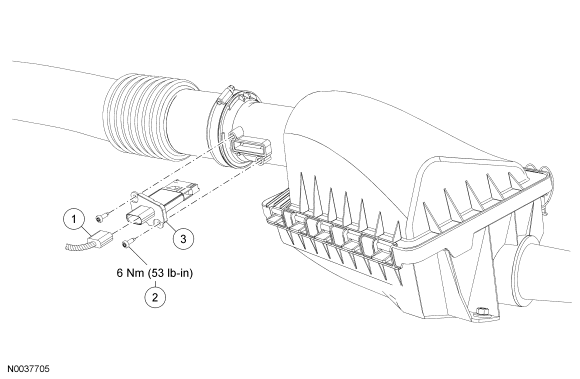

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Mass air flow (MAF) sensor electrical connector |
| 2 | W709207 | MAF sensor retaining screw (2 required) |
| 3 | 12B579 | MAF sensor |
- Disconnect the mass air flow (MAF) sensor electrical connector.
- Remove the MAF sensor retaining screws.
- To install, tighten to 6 Nm (53 lb-in).
- Remove the MAF sensor.
- To install, reverse the removal procedure.
