Side Turn Signal Lamp: Notes

WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

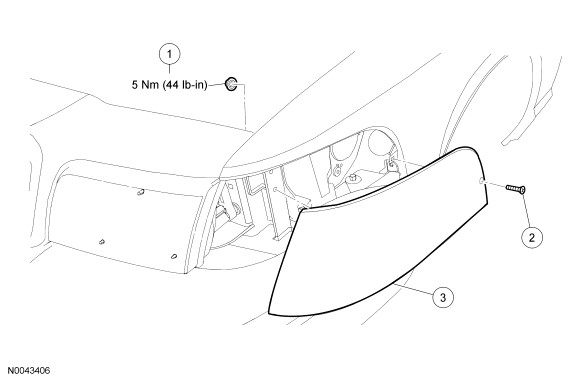

Fig 1: Exploded View Of Side Turn Signal Lamp With Torque Specifications - Crown Victoria
GF0014603Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N621906-S Side turn signal lamp nut
2 55999 Side turn signal lamp screw
3 15A425/15A424 Side turn signal lamp (LH/RH)

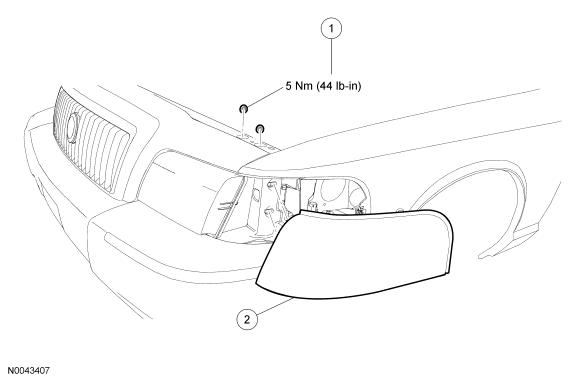

Fig 2: Exploded View Of Side Turn Signal Lamp With Torque Specifications - Grand Marquis
GF0014604Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N621906-S Side turn signal lamp nuts (2 required)
2 13201/13200 Side turn signal lamp (LH/RH)
