Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

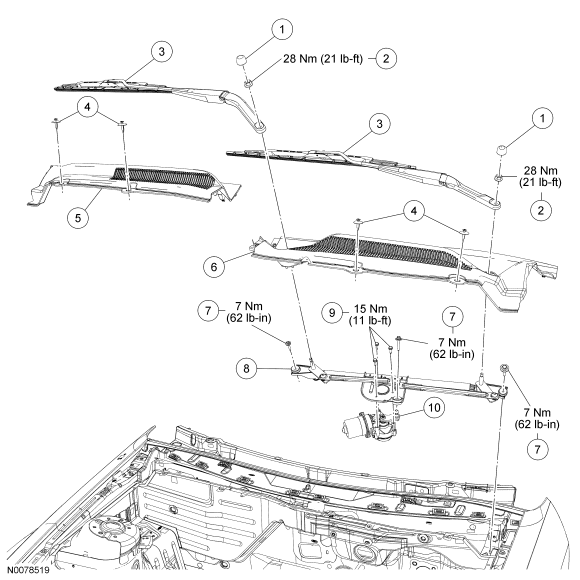

| Item |
Part Number |
Description |
| 1 |
17C526 |
Wiper pivot arm nut covers (2 required) |
| 2 |
W706109 |
Wiper pivot arm nuts (2 required) |
| 3 |
17526 RH/ 17527 LH |
Wiper pivot arms |
| 4 |
N804837 |
Cowl top vent screen pin-type retainers (4 required) |
| 5 |
63018A16 |
RH cowl top vent screen |
| 6 |
63018A17 |
LH cowl top vent screen |
| 7 |
W707532 |
Windshield wiper mounting arm and pivot shaft bolts (3 required) |
| 8 |
17508 |
Windshield wiper mounting arm and pivot shaft |
| 9 |
- |
Windshield wiper motor bolts (3 required) |
| 10 |
17504 |
Windshield wiper motor |
Courtesy of FORD MOTOR CO.

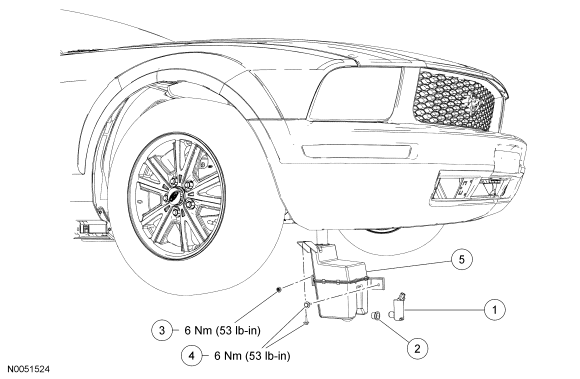

| Item |
Part Number |
Description |
| 1 |
17664 |
Windshield washer pump (or part of 17618) |
| 2 |
17B610 |
Windshield washer pump seal (or part of 17664) |
| 3 |
W623332 |
Windshield washer fluid reservoir nut |
| 4 |
W710381 |
Windshield washer fluid reservoir bolts (2 required) |
| 5 |
17618 |
Windshield washer fluid reservoir (includes 17664 and 17B618) |
- For additional information, refer to the appropriate procedures.
