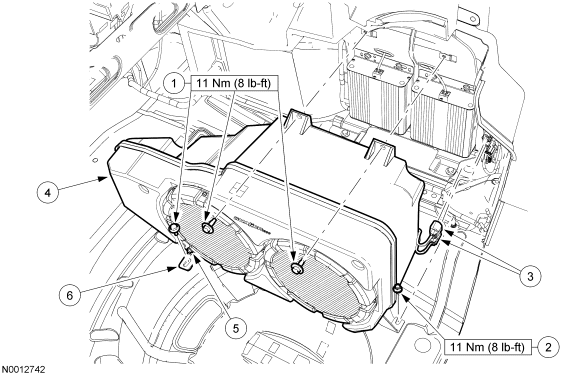

Speaker Enclosure: Notes
WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W505433 |
Speaker enclosure bolts (3 required) |
| 2 |
W705047 |
Speaker enclosure nut |
| 3 |
- |
Speaker enclosure electrical connectors (part of 14N128) |
| 4 |
19A067 |
Speaker enclosure |
| 5 |
W505416 |
L-bracket screws (2 required) |
| 6 |
19B187 |
L-bracket |
