Temperature Blend Door Actuator - RH: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

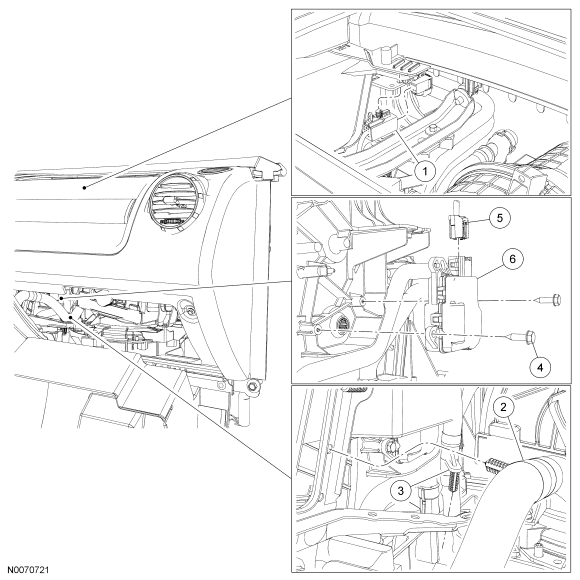

Taurus X shown, Taurus or Sable similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Temperature blend door actuator jumper harness electrical connector (part of 19D887) |
| 2 | - | In-vehicle temperature sensor aspirator hose pin-type retainer (part of 19D888) |
| 3 | - | Instrument panel wire harness pin-type retainer (part of 14401) |
| 4 | W701696 | RH temperature blend door actuator screw (2 required) |
| 5 | - | RH temperature blend door actuator electrical connector (part of 19D887) |
| 6 | 19E616 | RH temperature blend door actuator |
