Air Conditioning (A/C) Pressure Relief Valve: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

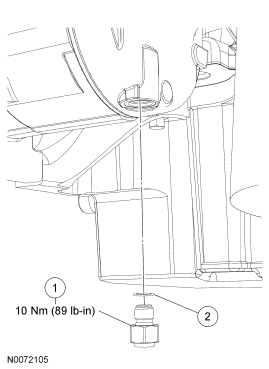

Fig 1: Air Conditioning (A/C) Pressure Relief Valve With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	19D644	A/C compressor pressure relief valve
2	-	O-ring seal (part of 19D644)
