Headlamp Bulb: Notes
WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

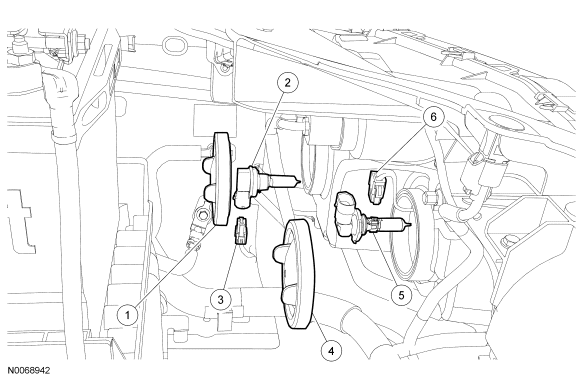

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Headlamp bulb access cover (part of 13005/13006) |
| 2 | 13N021 | Low beam bulb |
| 3 | - | Low beam bulb electrical connector (part of 13005/13006) |
| 4 | - | Headlamp bulb access cover (part of 13005/13006) |
| 5 | 13N021 | High beam bulb |
| 6 | - | High beam bulb electrical connector (part of 13005/13006) |
NOTE:

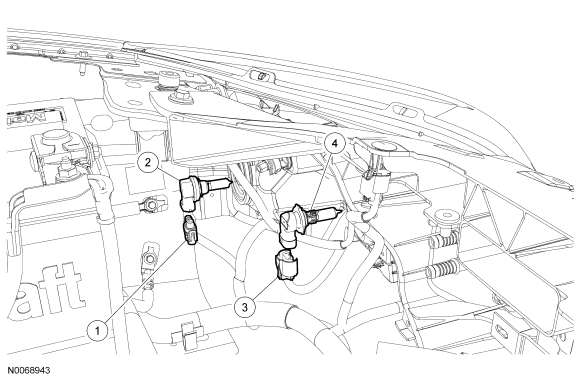

Sable shown, Taurus X similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Low beam bulb electrical connector (part of 14290) |
| 2 | 13N021 | Low beam bulb |
| 3 | - | High beam bulb electrical connector (part of 14290) |
| 4 | 13N021 | High beam bulb |
