Door Speaker: Notes

WARNING: This page is about a different car, the 2008 Mercury Sable, 2008 Ford Taurus X, and 2008 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Premium speaker shown, others similar.

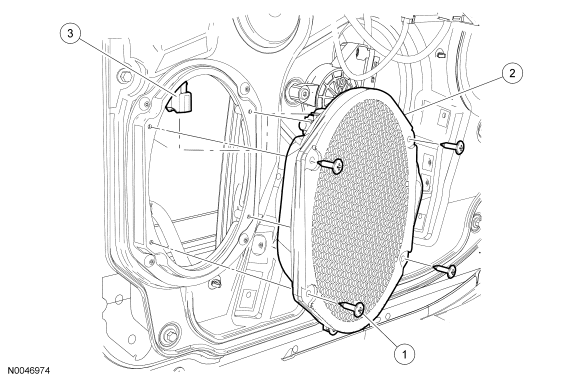

Fig 1: Exploded View Of Door Speaker

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	996707	Door speaker screws (4 required)
2	013300	Door speaker
3	14A464	Door speaker electrical connector
