Child Safety Seat Tether Anchor - Second Row: Notes

Material

Item	Specification
Clear Silicone Rubber TA-32	ESB-M4G92-A

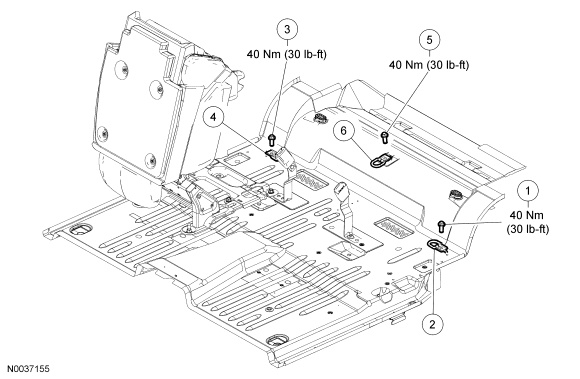

Fig 1: Exploded View Of Child Safety Seat Tether Anchor With Torque Specifications - Second Row

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Tether anchor bolt
2	-	Tether anchor
3	-	Tether anchor bolt
4	-	Tether anchor
5	-	Tether anchor bolt (part of 613D76A)
6	613D76A	Tether anchor
