Mass Air Flow (MAF) Sensor: Notes

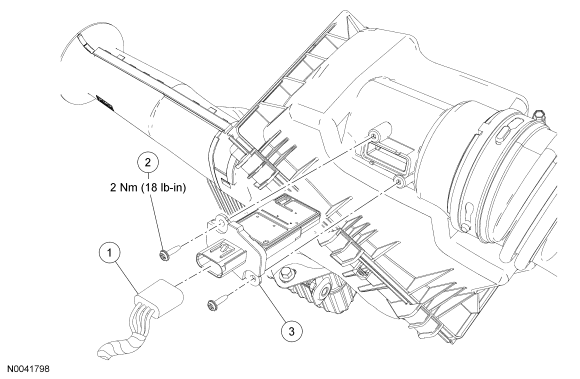

Fig 1: Exploded View Of Mass Air Flow (MAF) Sensor With Torque Specification
GF0029434Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Mass Air Flow (MAF) sensor electrical connector (part of 12B637)
2 W709287-S MAF sensor screw (2 required)
3 12B579 MAF sensor
