Right Rear Wheel Speed Sensor Connector

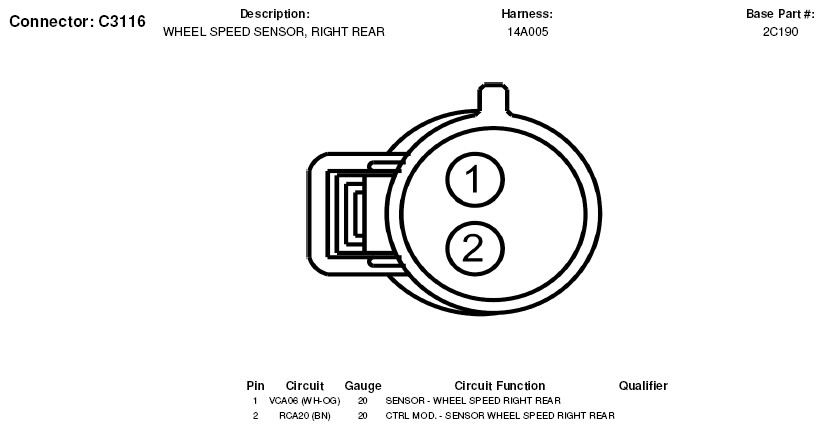

Fig 1: Right Rear Wheel Speed Sensor Connector End View (C3116)

G05603491
