Right License Plate Lamp Connector
Right License Plate Lamp Connector

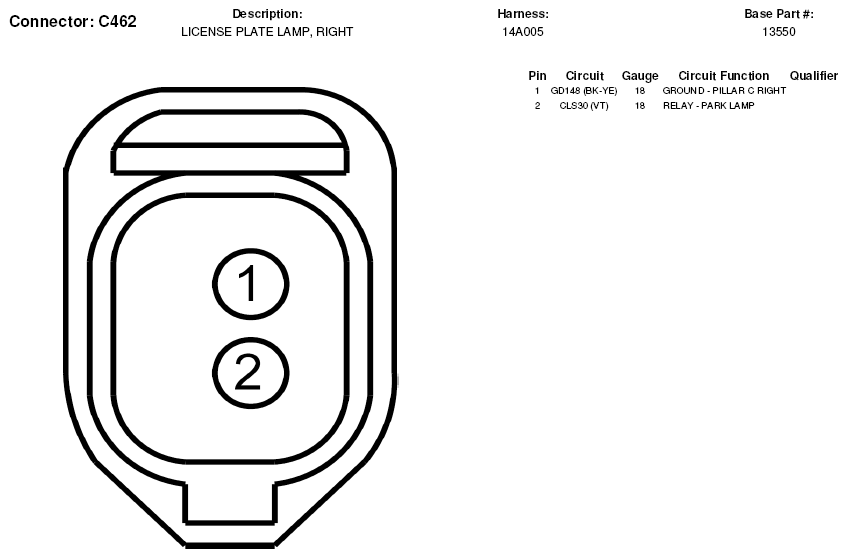

Fig 1: Right License Plate Lamp Connector End View (C462)
Fig 2: Right License Plate Lamp Connector End View (C464)
