Right Front Fog Lamp Connector
Right Front Fog Lamp Connector

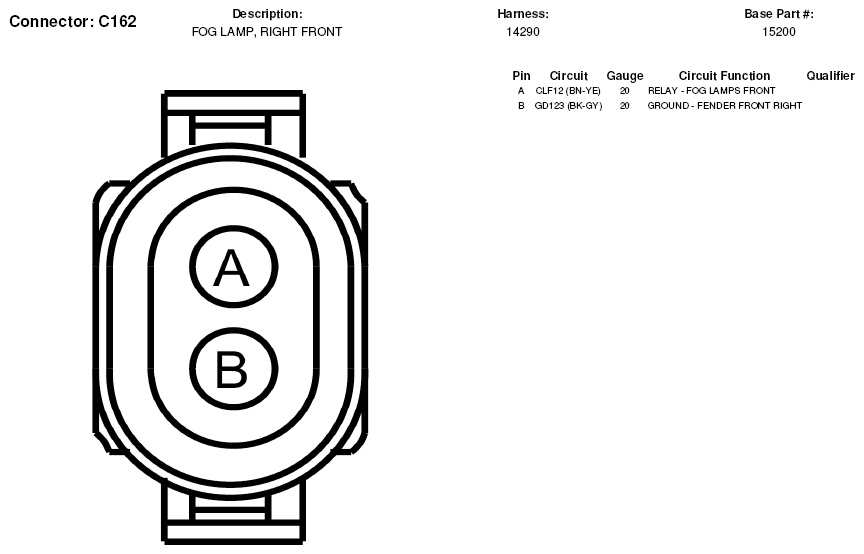

Fig 1: Right Front Fog Lamp Connector End View (C162)
