Left Exterior Rear View Mirror Connector

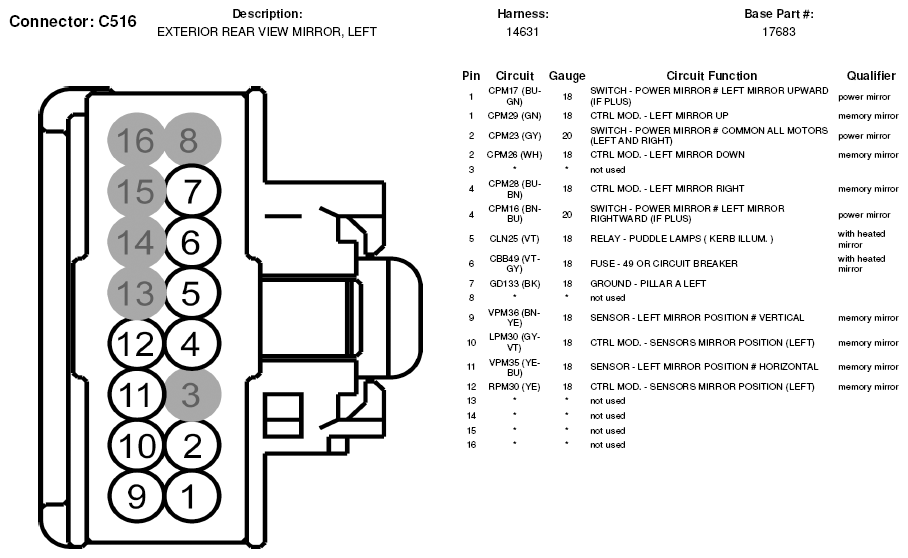

Fig 1: Left Exterior Rear View Mirror Connector End View (C516)

G05603373
