Led High Mounted Stoplamp Connector

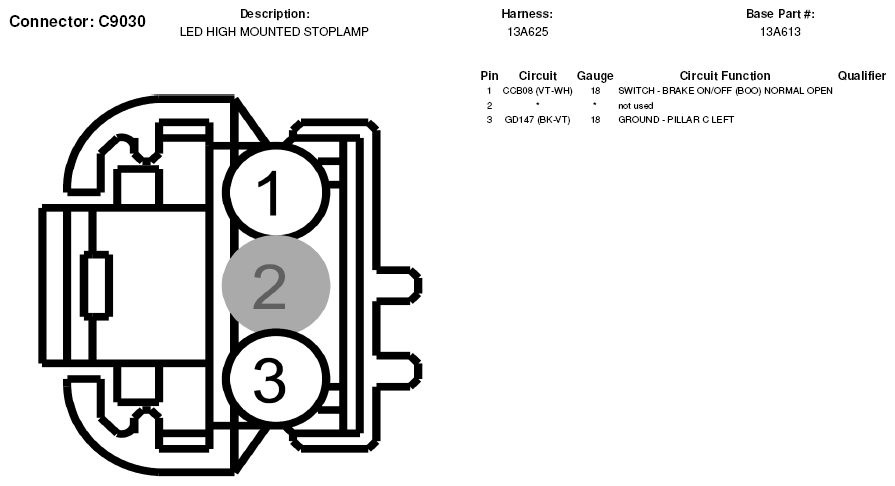

Fig 1: Led High Mounted Stoplamp Connector End View (C9030)

G05603561
