Driver Seat Front Height Motor Connector

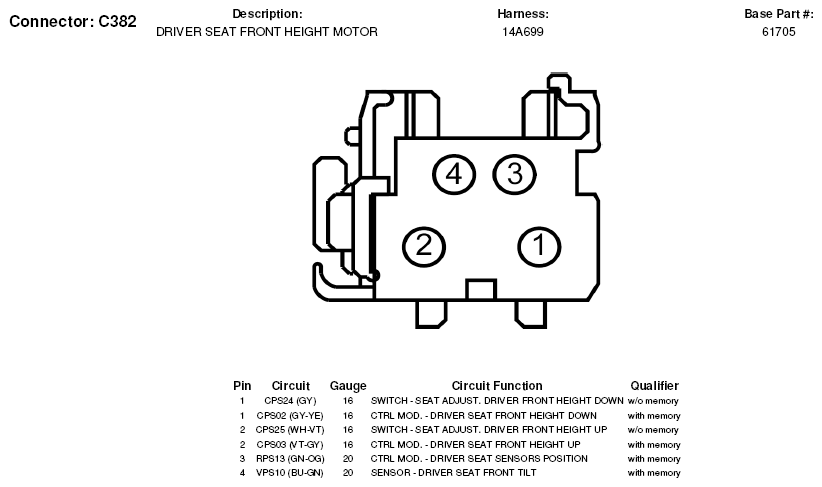

Fig 1: Driver Seat Front Height Motor Connector End View (C382)

G05603347
