Home >> Mercury >> 2008 >> Sable Base, AWD >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Connector Views >> Active Torque Control Coupling Solenoid Connector

Active Torque Control Coupling Solenoid Connector

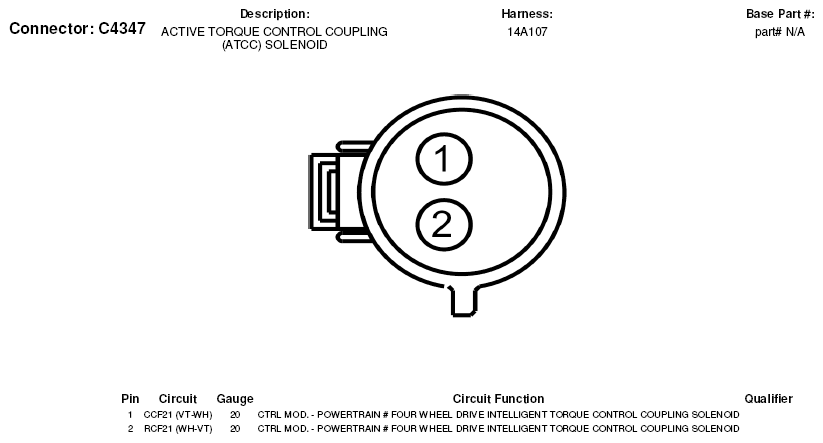

Fig 1: Active Torque Control Coupling Solenoid Connector End View (C4347)

G05603551
