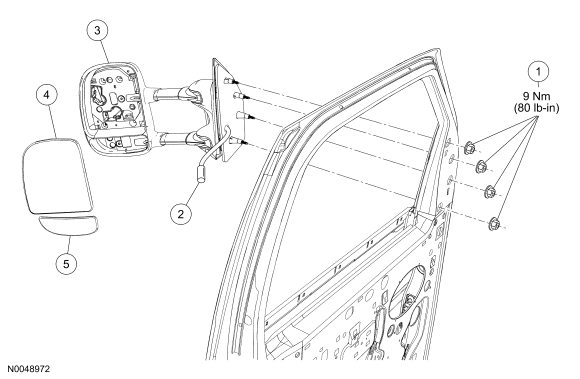

Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N802350-441 |
Exterior mirror nuts (4 required) |
| 2 |
19A041 |
Exterior mirror electrical connector |
| 3 |
17682 RH/ 17683 LH |
Exterior mirror assembly |
| 4 |
17K707 |
Exterior mirror glass |
| 5 |
17K707 |
Exterior mirror glass - spotter |

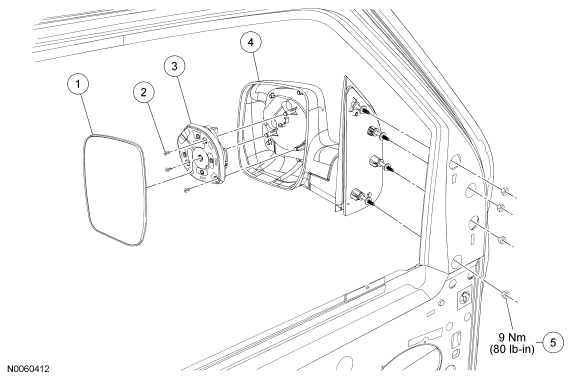

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
17K707 |
Exterior mirror glass |
| 2 |
- |
Exterior mirror screw (3 required) |
| 3 |
17D696 |
Exterior mirror motor |
| 4 |
17682 RH/ 17683 LH |
Exterior mirror assembly |
| 5 |
N802350-441 |
Exterior mirror nut (4 required) |
- For additional information, refer to the procedures.
