Wheel Speed Sensor - Rear, All Wheel Drive (AWD): Notes

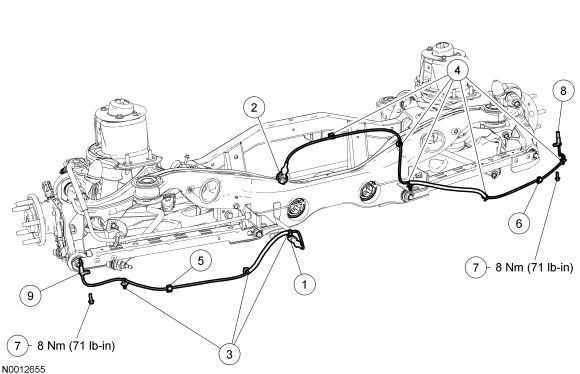

Fig 1: Exploded View Of Rear Wheel Speed Sensor - All Wheel Drive AWD With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 2C190)
2	-	Wheel speed sensor electrical connector (part of 2L216)
3	-	Wheel speed sensor harness pin-type retainers (part of 2C190) (3 required)
4	-	Wheel speed sensor harness pin-type retainers (part of 2L216) (5 required)
5	-	Wheel speed sensor harness spring clip (part of 2C190)
6	-	Wheel speed sensor harness spring clip (part of 2L216)
7	W709792	Wheel speed sensor bolts
8	2L216	Wheel speed sensor
9	2C190	Wheel speed sensor
