Ignition Lock Cylinder: Notes

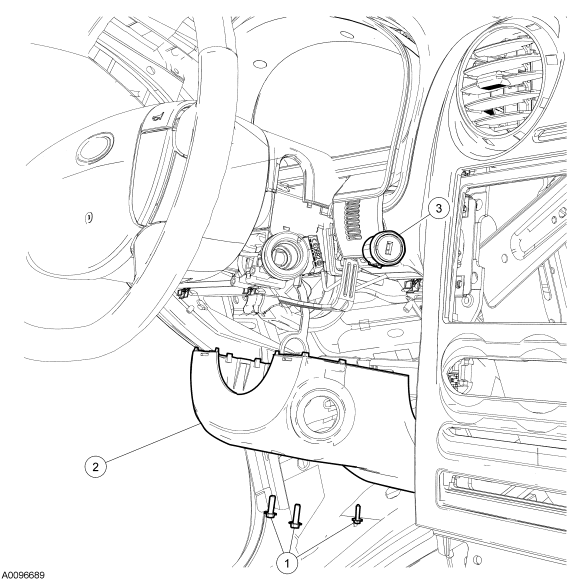

Fig 1: Exploded View Of Ignition Lock Cylinder
GF0016626Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W706731 Lower steering column shroud screws (3 required)
2 3K512 Lower steering column shroud
3 11582 Ignition lock cylinder
