Hood Latch and Components - Exploded View

NOTE: Taurus shown, others similar.

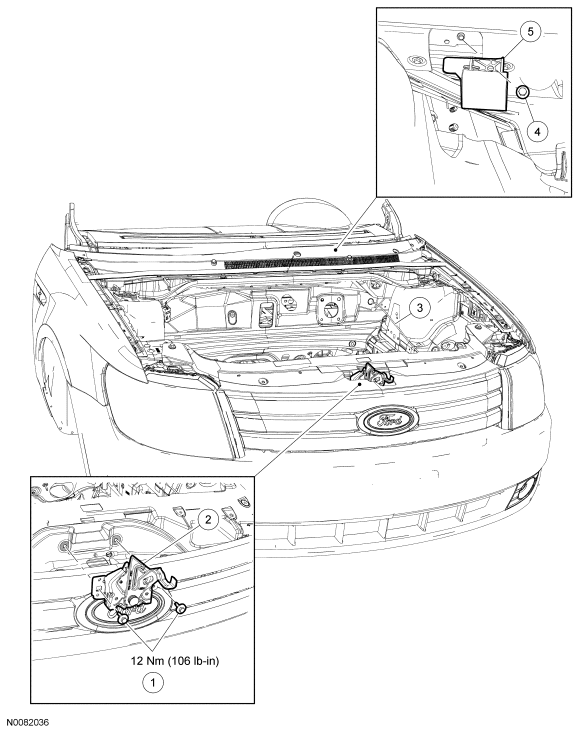

Fig 1: Hood Latch and Components - Exploded View With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N808727-S	Hood latch bolts (2 required)
2	16700	Hood latch
3	-	Hood latch release cable (part of 16916)
4	W505424-S	Hood latch release handle bolt
5	16916	Hood latch release handle and cable assembly

1. For additional information, refer to the procedures in this article.
