Safety Belt Retractor - Third Row, Center: Notes

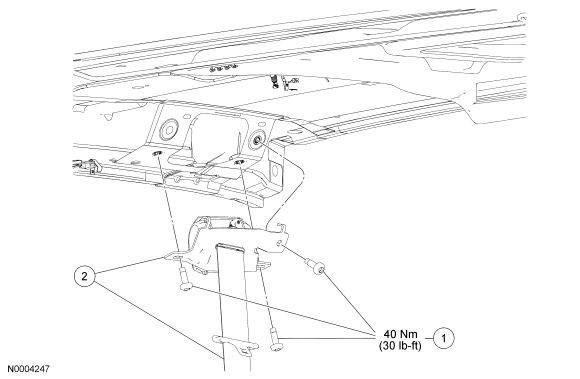

Fig 1: Exploded View Of Third Row Center Safety Belt Retractor With Torque Specifications
GF0032861Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W504775 Center safety belt retractor bolts (3 required)
2 - Center safety belt retractor
