Passenger Air Bag Module Connectors

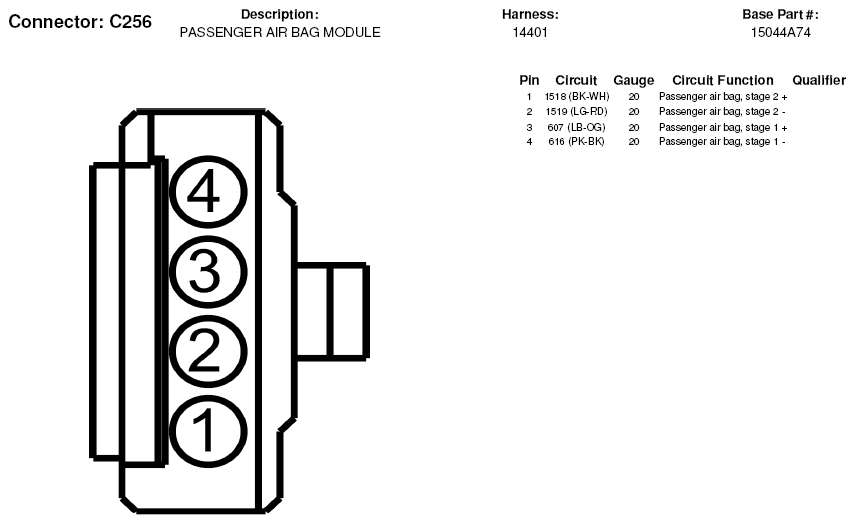

Fig 1: Passenger Air Bag Module Connector End View (C256)

G05181518

Courtesy of FORD MOTOR CO.
