Driver Memory Seat Rear Connector

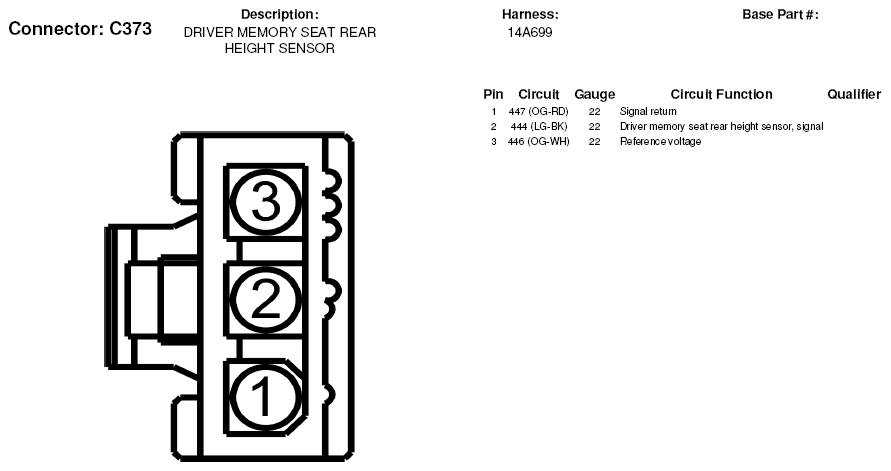

Fig 1: Driver Memory Seat Rear Connector End View (C373)

G05181558

Courtesy of FORD MOTOR CO.
