Driver Memory Seat Front Connector

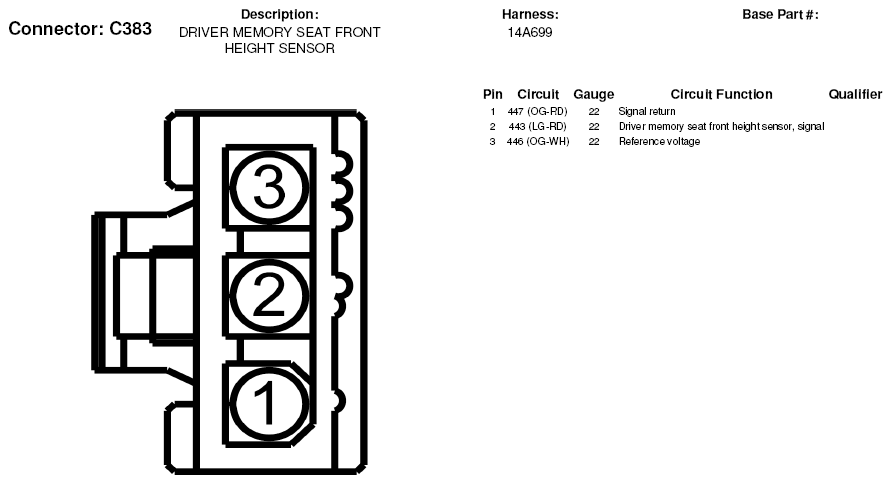

Fig 1: Driver Memory Seat Front Connector End View (C383)

G05181559

Courtesy of FORD MOTOR CO.
