Seat Adjust Switch Connectors

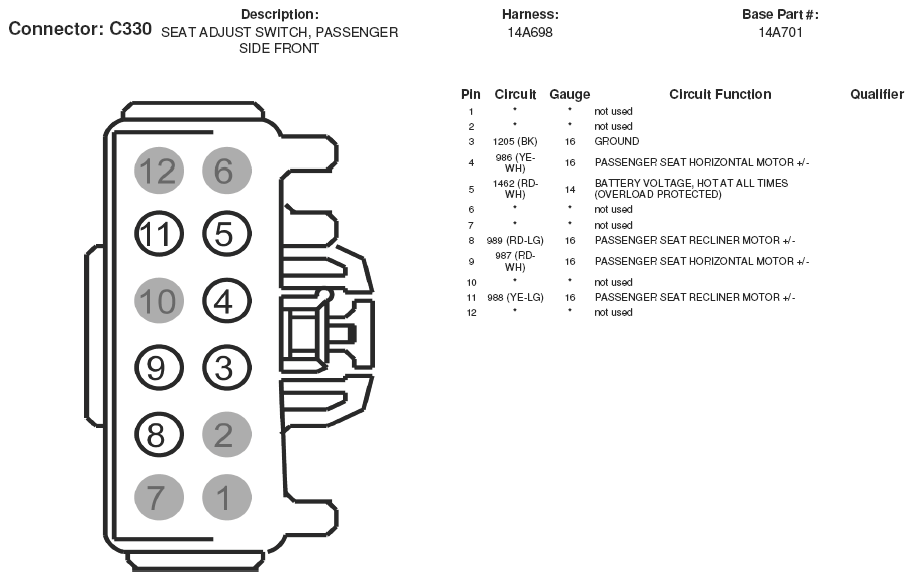

Fig 1: Seat Adjust Switch Connector End View (C330)
G05168749Courtesy of FORD MOTOR CO.

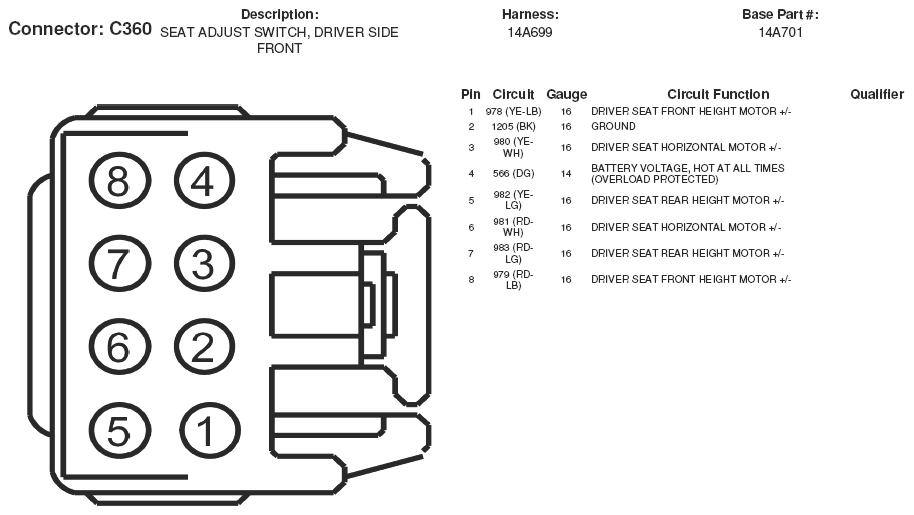

Fig 2: Seat Adjust Switch Connector End View (C360)
G05168761Courtesy of FORD MOTOR CO.

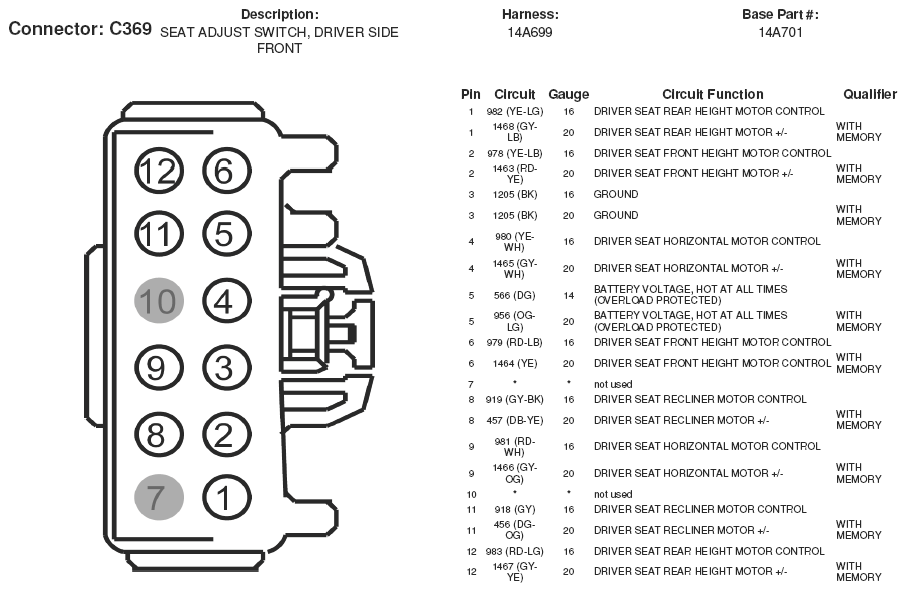

Fig 3: Seat Adjust Switch Connector End View (C369)
G05168766Courtesy of FORD MOTOR CO.

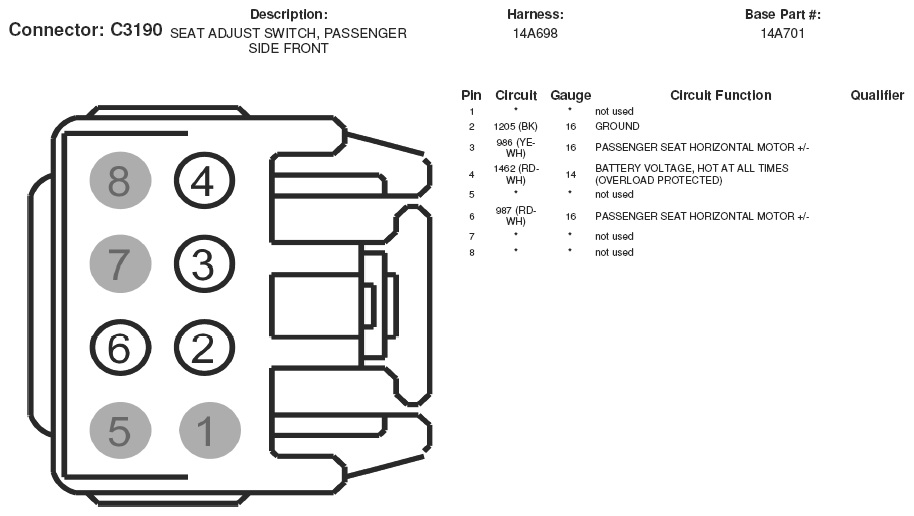

Fig 4: Seat Adjust Switch Connector End View (C3190)
G05168912Courtesy of FORD MOTOR CO.
