Liftgate Release Switch / Decklid Release Switch Connector

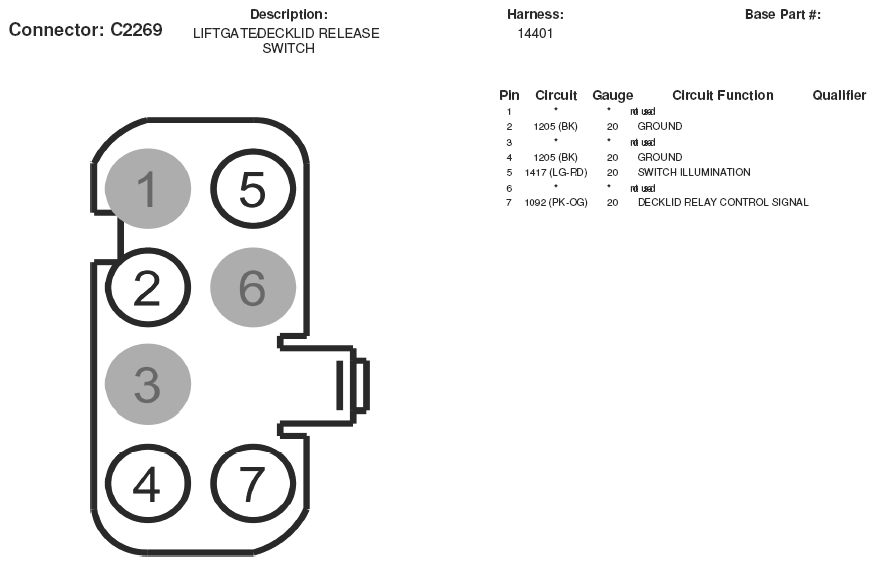

Fig 1: Liftgate Release Switch / Decklid Release Switch Connector End View (C2269)

G05168883

Courtesy of FORD MOTOR CO.
