Inertia Fuel Shutoff Switch Connector

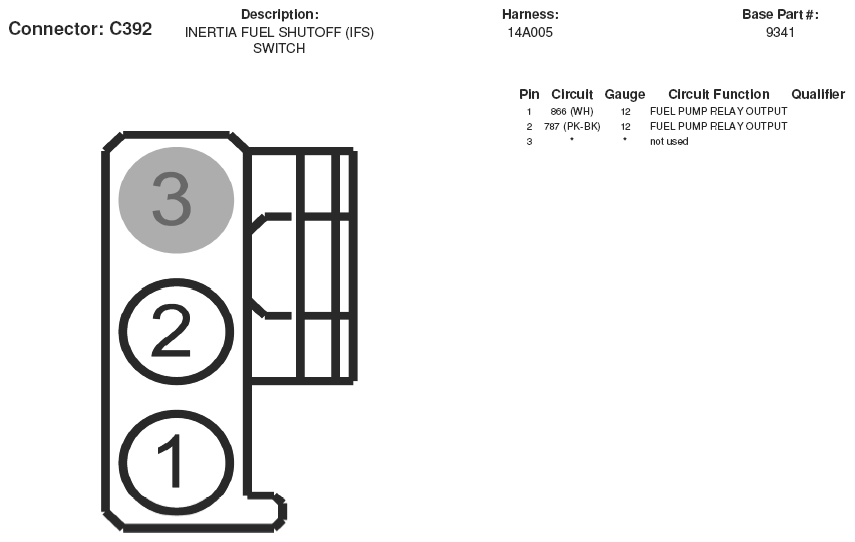

Fig 1: Inertia Fuel Shutoff Switch Connector End View (C392)

G05168770

Courtesy of FORD MOTOR CO.
