Fuel Rail Pressure Sensor / Fuel Rail Temperature Sensor Connector

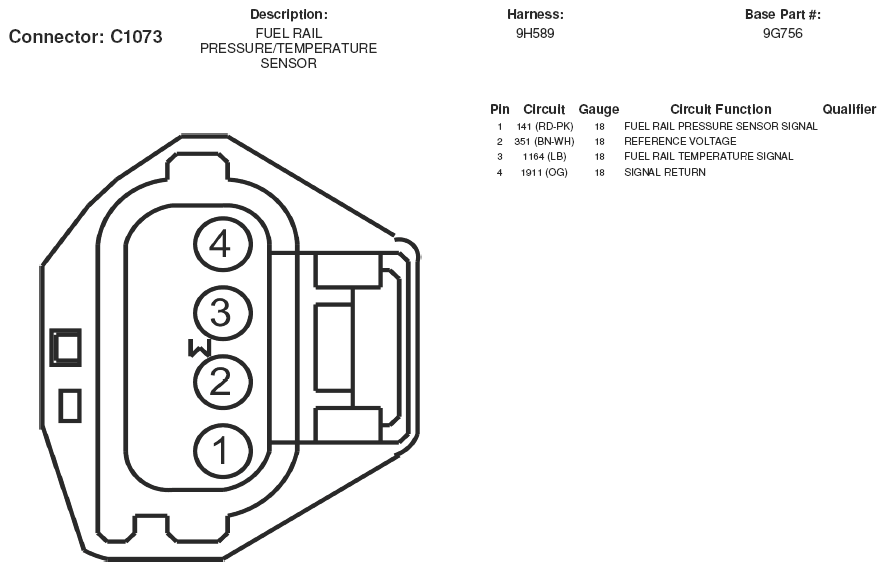

Fig 1: Fuel Rail Pressure Sensor / Fuel Rail Temperature Sensor Connector End View (C1073)

G05168849

Courtesy of FORD MOTOR CO.
