Front Blower Motor Speed Connector

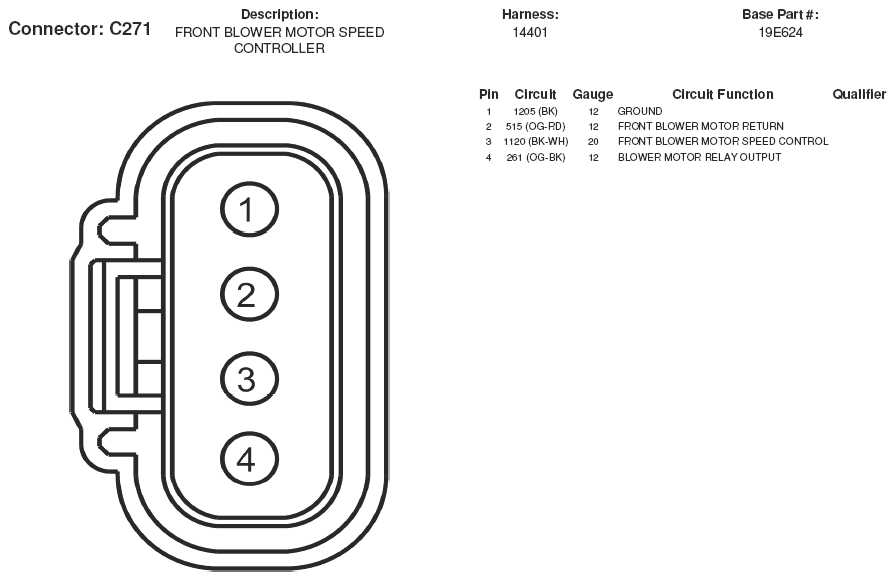

Fig 1: Front Blower Motor Speed Connector End View (C271)

G05168734

Courtesy of FORD MOTOR CO.
