Clockspring Connectors

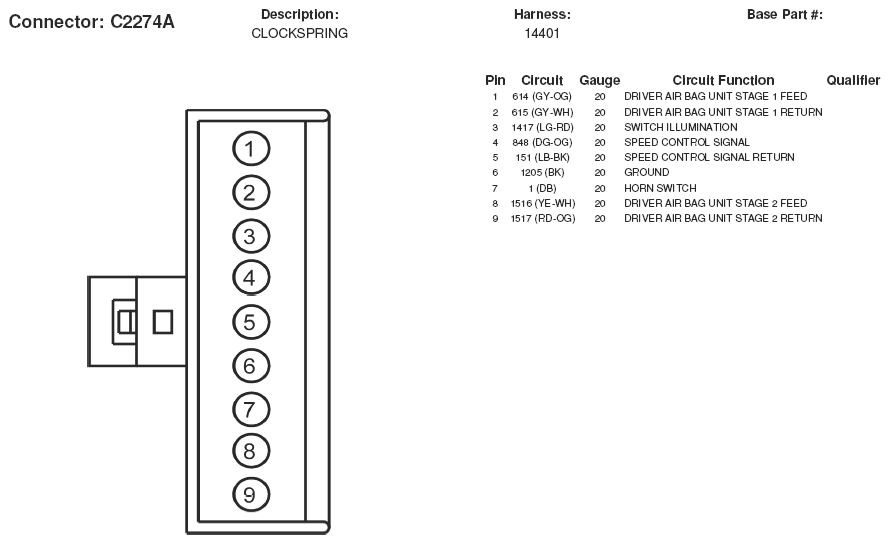

Fig 1: Clockspring Connector End View (C2274A)

G05168884

Courtesy of FORD MOTOR CO.

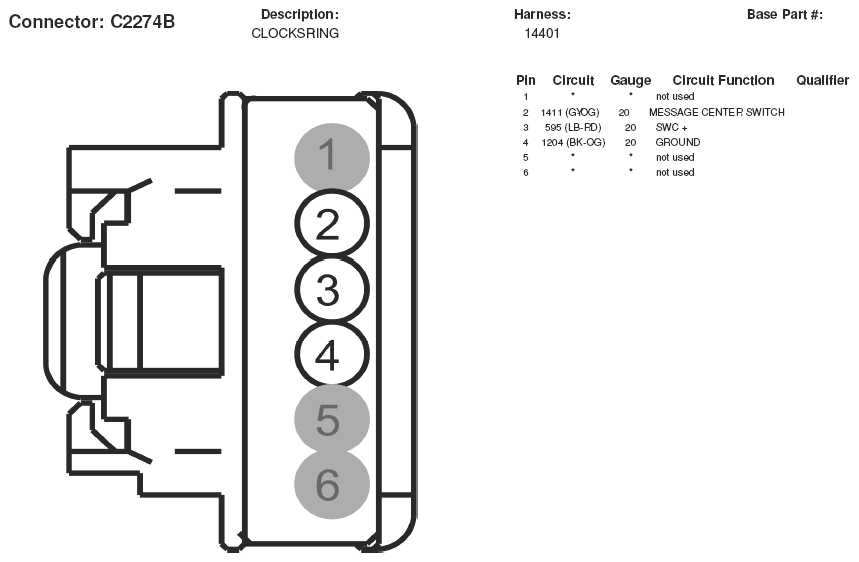

Fig 2: Clockspring Connector End View (C2274B)

G05168885

Courtesy of FORD MOTOR CO.
