Auxiliary Relay Box 3 Connector
Auxiliary Relay Box 3 Connector

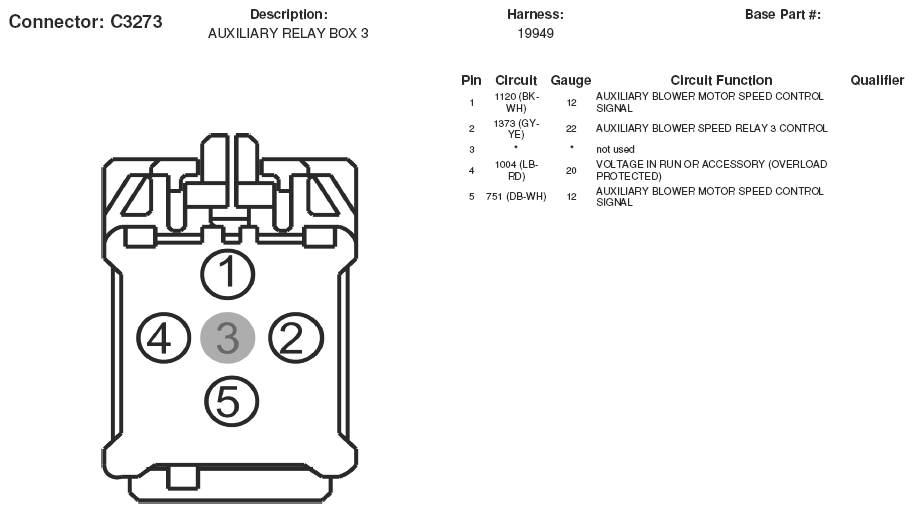

Fig 1: Auxiliary Relay Box 3 Connector End View (C3273)
Courtesy of FORD MOTOR CO.
