Adjustable Pedal Motor Connector

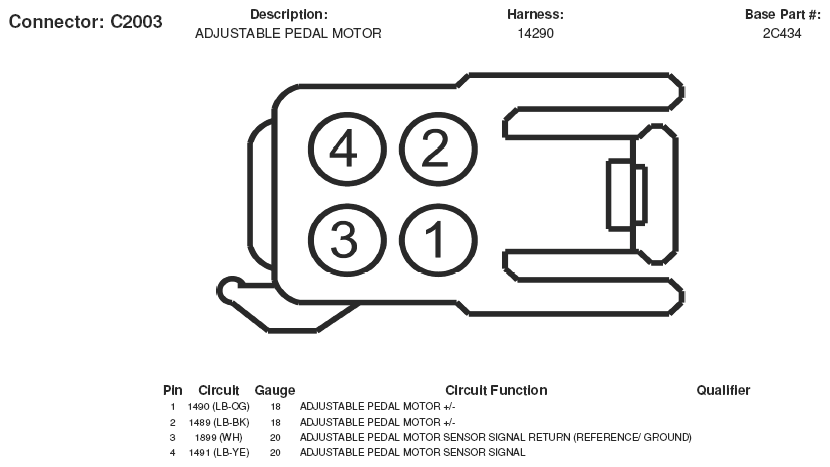

Fig 1: Adjustable Pedal Motor Connector End View (C2003)

G05168870

Courtesy of FORD MOTOR CO.

Fig 2: Adjustable Pedal Motor Connector End View (C2159)

G05168879

Courtesy of FORD MOTOR CO.
