Blower Motor: Notes

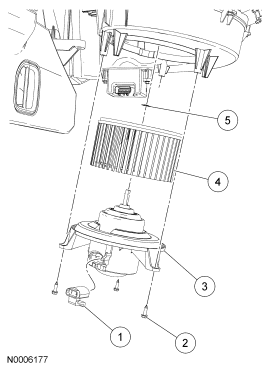

Fig 1: Exploded View Of Blower Motor
GF0018059Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14401 Blower motor electrical connector
2 W701696 Blower motor screw (3 required)
3 19805 Blower motor
4 19834 Blower motor wheel
5 18A287 Blower motor wheel clip
