Auxiliary Coolant Flow Pump: Notes

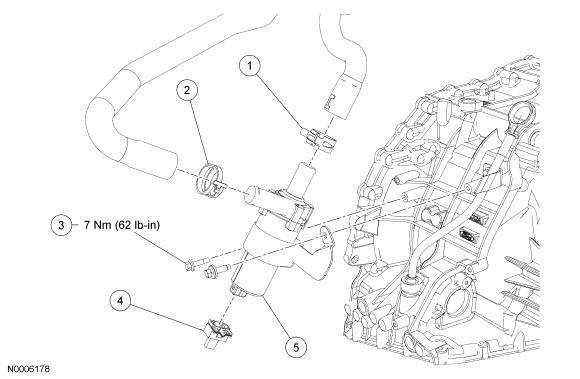

Fig 1: Exploded View Of Auxiliary Coolant Flow Pump With Torque Specifications
GF0018058Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8287 Hose clamp
2 8287 Hose clamp
3 W506413 Auxiliary coolant flow pump bolts (2 required)
4 14300 Auxiliary coolant flow pump electrical connector
5 18D473 Auxiliary coolant flow pump
