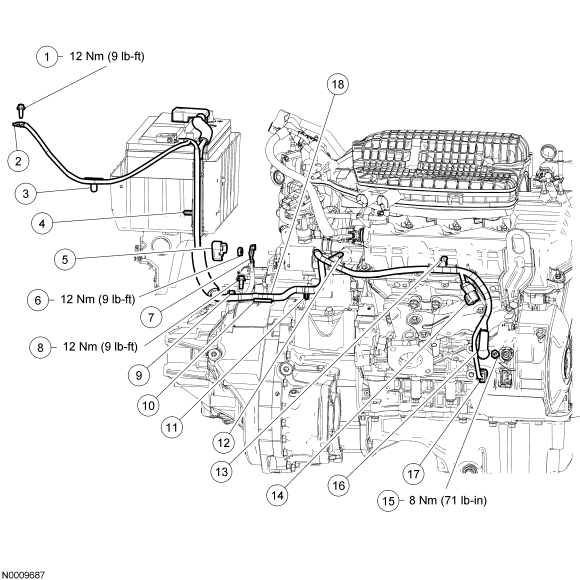

Battery Cables: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | W706281 | Body ground cable bolt |
| 2 | - | Body ground terminal (part of 14300) |
| 3 | - | Battery cable harness locator (part of 14300) |
| 4 | - | Battery cable harness locator (part of 14300) |
| 5 | 11N087 | Starter terminal cover |
| 6 | N805403 | Starter B+ cable nut |
| 7 | - | Starter B+ cable end (part of 14300) |
| 8 | W506011 | Engine ground cable bolt |
| 9 | - | Engine ground cable end (part of 14300) |
| 10 | - | Battery cable harness locator (part of 14300) |
| 11 | - | Battery cable harness locator (part of 14300) |
| 12 | - | Battery cable harness locator (part of 14300) |
| 13 | - | Battery cable harness locator (part of 14300) |
| 14 | - | Battery cable harness in-line connector (part of 14300) |
| 15 | W705790 | Generator B+ cable nut |
| 16 | - | Generator B+ cable end (part of 14300) |
| 17 | - | Generator electrical connector (part of 14300) |
| 18 | 14300 | Battery cable harness |

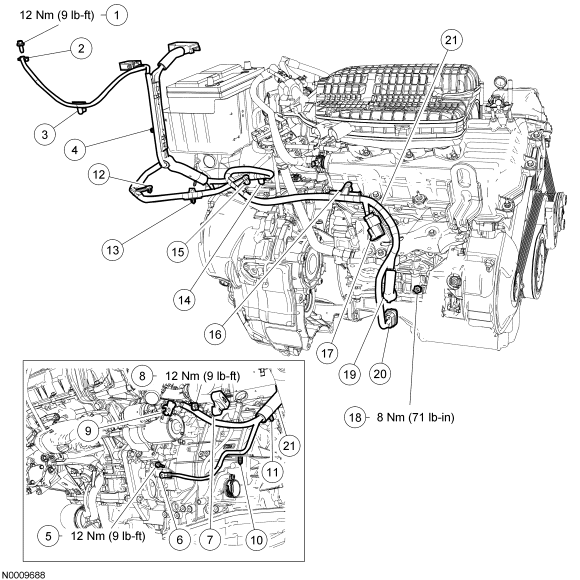

Fig 2: Exploded View Of Battery Cables - Continuously Variable Transaxle CVT With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W706281 | Body ground cable bolt |
| 2 | - | Body ground cable end (part of 14300) |
| 3 | - | Battery cable harness locator (part of 14300) |
| 4 | - | Battery cable harness locator (part of 14300) |
| 5 | W506011 | Engine ground cable bolt |
| 6 | - | Engine ground cable end (part of 14300) |
| 7 | 11N087 | Starter terminal cover |
| 8 | N805320 | Starter B+ cable nut |
| 9 | - | Starter B+ cable end (part of 14300) |
| 10 | - | Battery cable harness locator (part of 14300) |
| 11 | - | Battery cable harness locator (part of 14300) |
| 12 | - | Battery cable harness locator (part of 14300) |
| 13 | - | Battery cable harness locator (part of 14300) |
| 14 | - | Battery cable harness locator (part of 14300) |
| 15 | - | Battery cable harness locator (part of 14300) |
| 16 | - | Battery cable harness locator (part of 14300) |
| 17 | - | Battery cable harness in-line connector (part of 14300) |
| 18 | W705790 | Generator B+ cable nut |
| 19 | - | Generator B+ cable terminal (part of 14300) |
| 20 | - | Generator electrical connector (part of 14300) |
| 21 | 14300 | Battery cable harness |
