Seat - Exploded View, Second Row, Freestyle

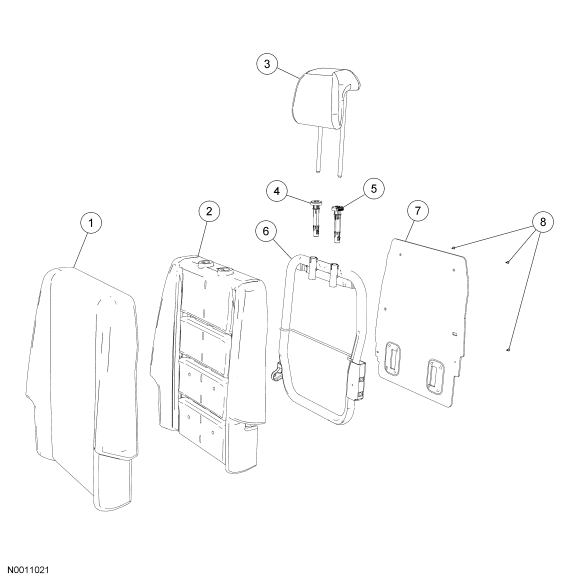

Fig 1: Exploded View Of Second Row Seat 40 Percent Backrest - Freestyle With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Backrest trim cover
2	-	Backrest foam pad
3	611A08	Head restraint assembly
4	610A16B	Slave head restraint guide
5	610A16A	Master head restraint guide
6	613A38	Backrest frame
7	60508	Backrest hard back panel
8	56910-S58	Backrest hard back panel-to-backrest frame screws (4 required)

NOTE: Both seat riser and seat track are shown.

Fig 2: Exploded View Of Second Row Seat 40 Percent Cushion - Freestyle With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cushion trim cover
2	-	Cushion foam pad
3	-	Recliner
4	W709835	Recliner-to-backrest bolts (2 required)
5	-	Pivot bolt
6	-	Inboard pivot cover
7	-	Inboard recliner cover
8	W520112-S	Cushion frame-to-riser/seat track nuts (6 required)
9	W705589-S	Pin-type retainer
10	-	Outboard pivot cover
11	-	Safety belt buckle
12	-	Pivot grommet
13	-	Cushion frame
14	-	Recliner outer cover
15	-	Safety belt buckle bolt
16	-	Manual recline handle
17	56910-S58	Screw
18	-	Riser
19	W709835	Recliner-to-cushion frame bolts (2 required)
20	-	Seat track
21	-	Riser/seat track inboard outer cover
22	56910-S58	Screws (3 required)
23	56910-S58	Screws (2 required)
24	56910-S58	Screws (3 required)
25	-	Riser/seat track inboard inner cover
26	56910-S58	Screws (2 required)
27	-	Riser/seat track outboard inner cover
28	-	Riser/seat track outboard outer cover

Fig 3: Exploded View Of Second Row Seat 60 Percent Backrest - Freestyle With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	LH head restraint
2	-	RH head restraint
3	56910-S58	Screws (5 required)
4	-	Backrest hard back panel
5	-	Safety belt retractor and safety belt buckle assembly
6	-	Backrest frame
7	-	LH inner/RH outer head restraint guide
8	-	LH outer/RH inner head restraint guide
9	W504760-S	Inner safety belt guide bolts (2 required)
10	-	Backrest foam pad
11	-	Pivot grommet
12	W704400-S	Safety belt retractor bolt
13	-	Backrest trim cover
14	-	Outer safety belt trim guide

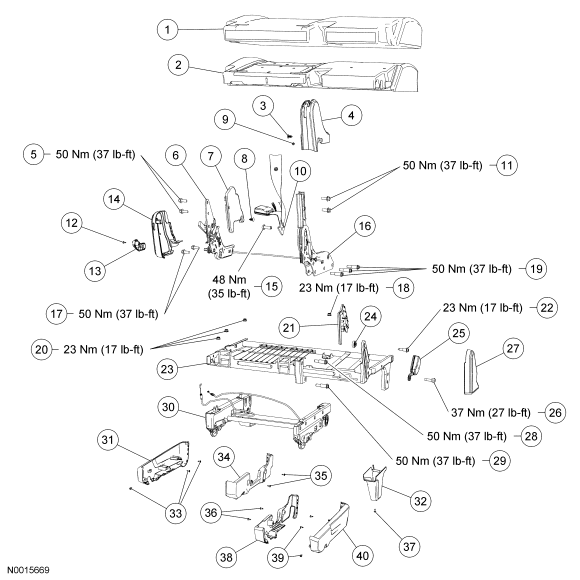

Fig 4: Exploded View Of Second Row Seat 60 Percent Cushion - Freestyle With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cushion trim cover
2	-	Cushion foam pad
3	W705589-S	Pin-type retainer
4	-	RH recliner cover
5	W709835	LH recliner-to-backrest bolts (2 required)
6	-	LH recliner
7	-	LH recliner inner cover
8	W705589-S	Pin-type retainer
9	56910-S58	Screw
10	-	Safety belt buckle and safety belt anchor assembly
11	-	RH recliner-to-backrest bolts (2 required)
12	W705274-S	Screw
13	-	Manual recline handle
14	-	LH recliner outer cover
15	-	Safety belt buckle and safety belt anchor assembly-to-inboard recliner bolt
16	-	RH recliner
17	W709835	LH recliner-to-cushion frame bolts (2 required)
18	W709835	Cushion frame-to-riser bolt
19	W709835	RH recliner-to-riser bolts (3 required)
20	W520112-S	Cushion frame-to-riser nuts (3 required)
21	-	Inboard pivot cover
22	605C12A	Pivot bolt
23	-	Cushion frame
24	-	Pivot grommet
25	-	Safety belt buckle
26	-	Safety belt buckle bolt
27	-	Outboard pivot cover
28	605C12B	Cushion frame yoke-to-RH recliner bolt
29	605C12B	Cushion frame yoke-to-riser bolt
30	-	Riser
31	-	Riser LH outer cover
32	-	Stationary foot cover
33	56910-S58	Screws (3 required)
34	-	Riser LH inner cover
35	56910-S58	Screws (2 required)
36	56910-S58	Screws (2 required)
37	56910-S58	Screw
38	-	Riser RH inner cover
39	56910-S58	Screws (3 required)
40	-	Riser RH outer cover
