Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH side shown, LH side similar.

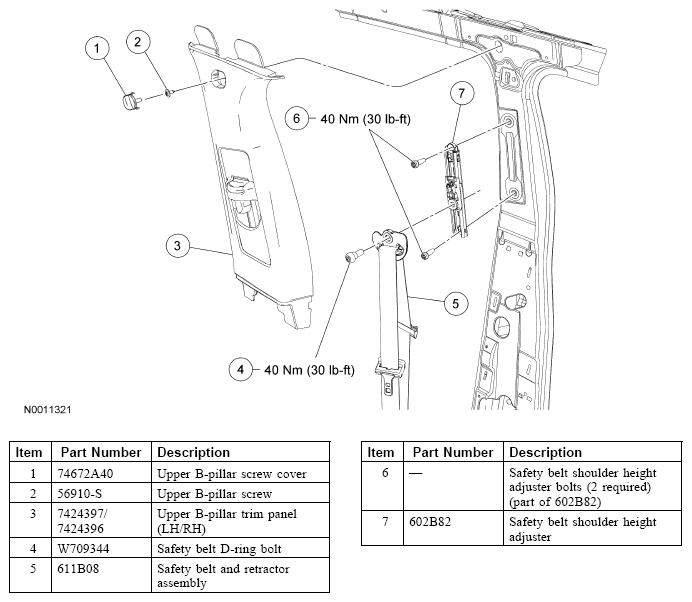

Fig 1: Safety Belt Shoulder Height Adjuster Replacement Components With Torque Specifications

G04659187

Courtesy of FORD MOTOR CO.
