Removal and Installation

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the mass air flow (MAF) sensor electrical connector.

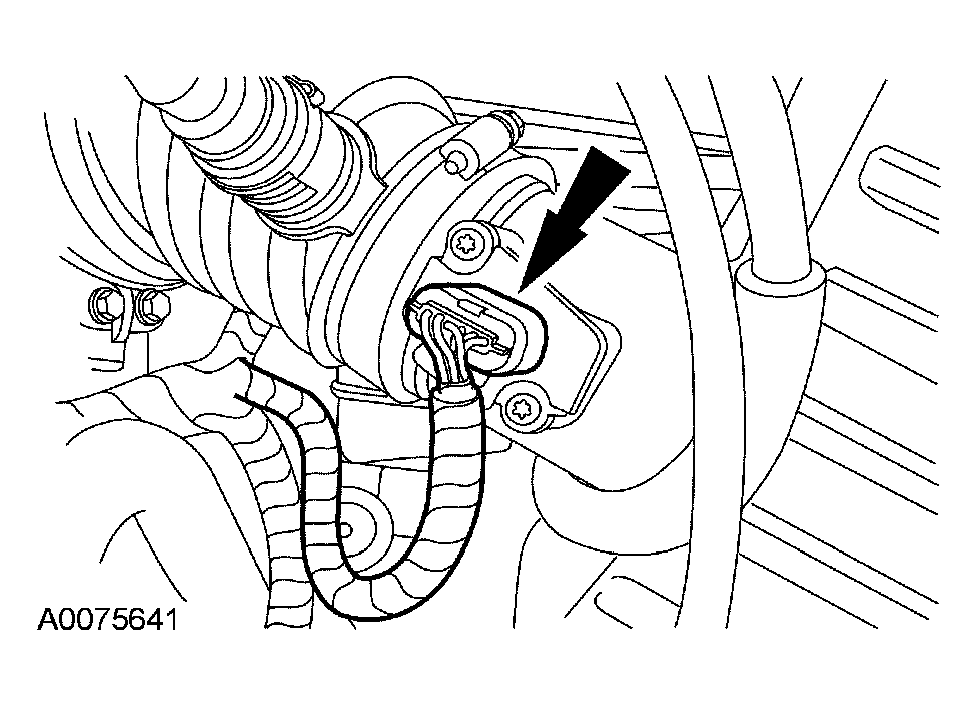

    Fig 1: Disconnecting Mass Air Flow Sensor Electrical Connector
    G03956586Courtesy of FORD MOTOR CO.
  3. Remove the two retaining screws and the MAF sensor.

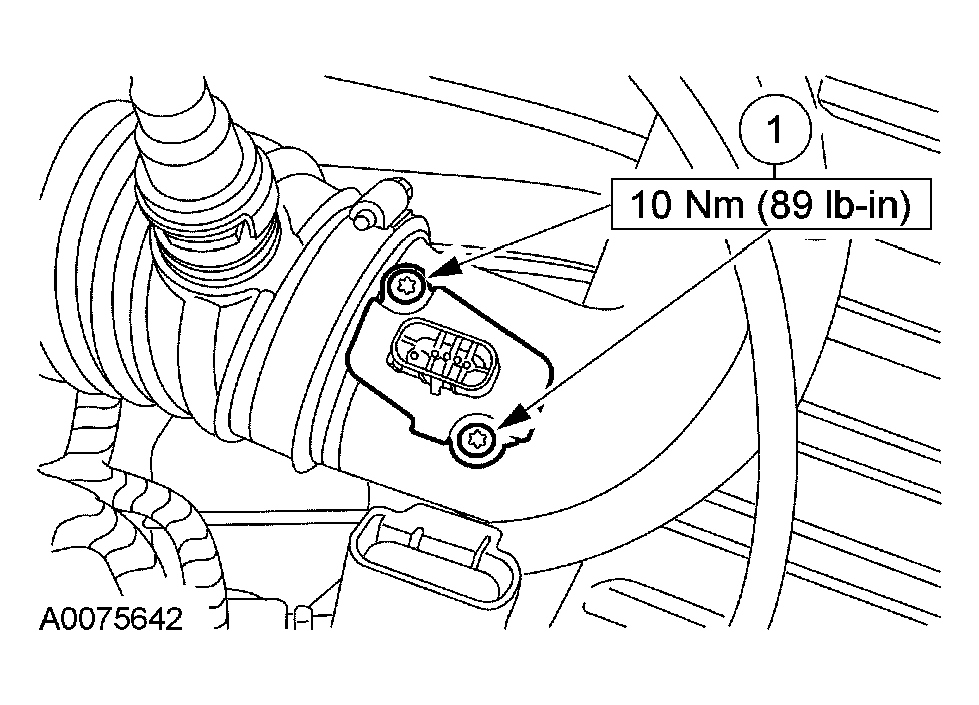

    Fig 2: Removing Retaining Screws And MAF Sensor - With Torque Specification
    G03956587Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
